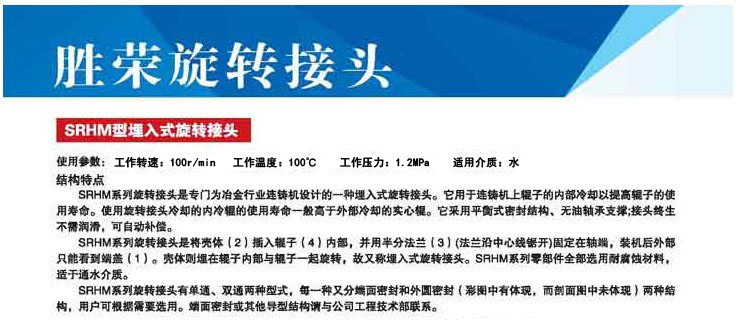

SRHM Rotary Joint
Parameter：Maximum speed：100r/min Maximum temperature：100℃
Maximum pressure：100Mpa Suitable medium: water
Structural features：
SRHM series rotary joints are specifically designed for the metallurgical industry, continuous casting machine of a submerged rotary joint. It is used on the caster sub-Kun Kun internal cooling to improve the child's life. Using the rotary joint internal cooling is generally higher than the life of the cold Kun external cooling solid Kun. It uses balanced seal structure, oil-free bearings, no lubrication fittings for life, can be self-compensation.

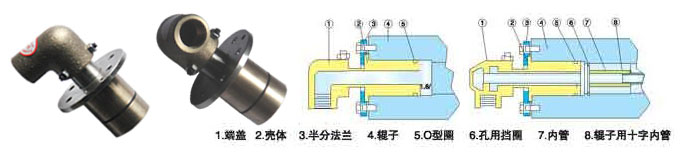

SRHM series rotary joint is that put the shell into inside the sub-Kun, and with half-point flange (saw the flange along the center line) fixed to the shaft, after installed you can only see the cover outside, the shell is buried in the internal of Kun and rotate with it, it is also known as submerged rotary joint. SRHM Series components all use corrosion-resistant materials ,for water —through media.

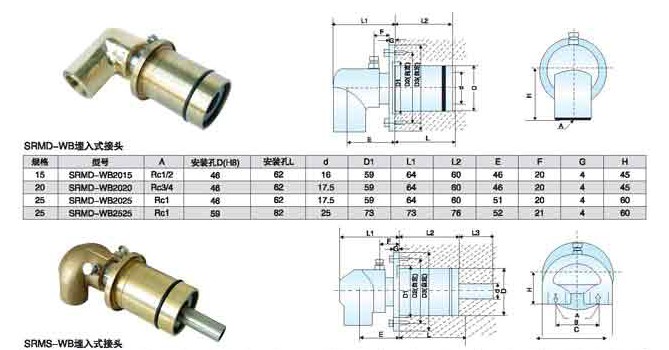

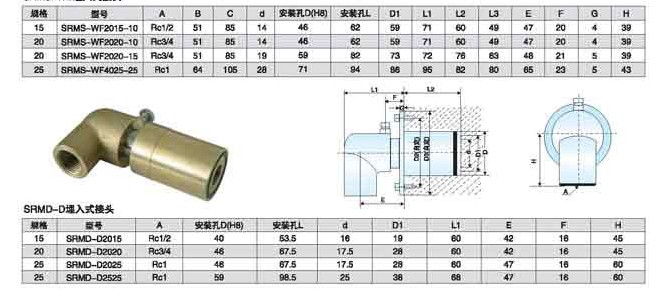

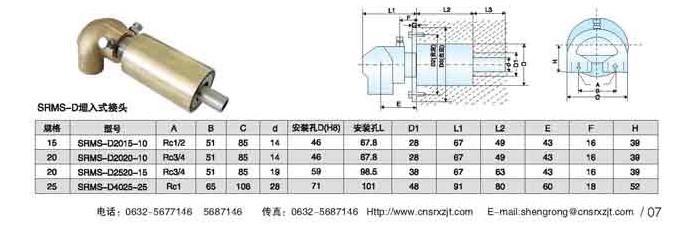

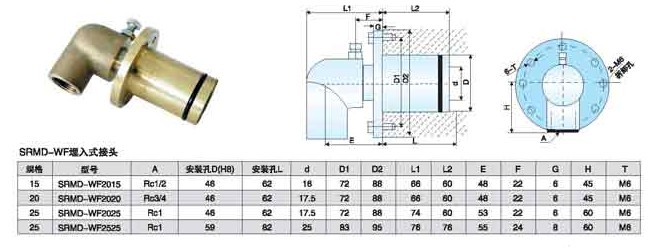

SRHM series rotary joint have two forms, a single pass and double pass .Each of them was divided into the outer ring face seal and the end seal (color circle are reflected, but not reflected in profile) two ends of the structure. The users use anyone according your need, end seal or other structure, please contact our engineering department.
|
