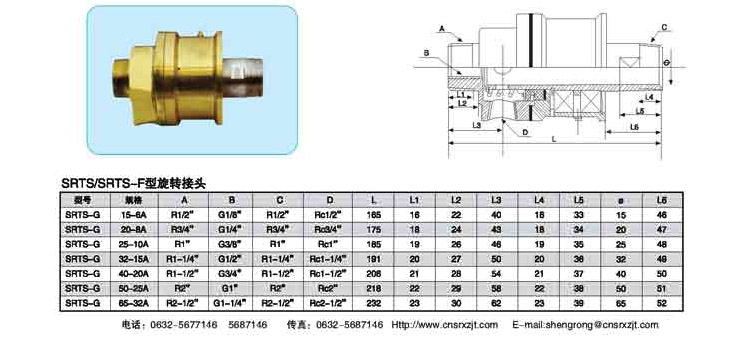

SRTD/SRTS Rotary Joint
Structural features:
Hollow shaft is linked directly with the Kun tube through thread or flange, which is the main rotating components. Sealing structure combines the characteristics of Q-type (internal seal) H-type (bearing support) D-type (end face seal), and adopts the balance seal design, forming a overall dynamic seal between shaft and mechanical seals, which solve Seal face’s partial wear caused by seal face and static seal ring do not in the same heart effectively, extending the life. The rotating torque is reduced substantially for that the hollow shaft was supported by the bearing.
Use Conditions :
Pressure:≤1.0Mpa Maximum speed：100rpm（Normal） 200-3000rpm（High Speed）
Temperature：0℃-80℃ Use media: water, air, etc.
|
